BANNER PRESENTATION AT THE 2023 CITY OF MELBOURNE COMMERCIAL BUILDING EXHIBITION
DOWNLOAD RHE BROCHURE ON INDOOR POOL INSTALLATIONS CLICK HERE BROCHURE
DOWNLOAD OUR CAPABILITY STATEMENT CLICK HERE.
  • PHONE 61 409 796 146 M: 0409 796 146
  • WE ARE THE ONLY MANUFACTURERS OF ROTARY HEAT EXCHANGERS IN AUSTRALIA
  • WE ARE 100% AUSTRALIAN OWNED AND MANUFACTURE THE UNIQUE AUSTRALIAN HIGH EFFICIENCY, LONG LIFE, THIN ROTOR MYLAR MATRIX HEAT WHEEL SINCE 1968.
  • THE COMPANY WAS ESTABLISHED IN 1968 FOLLOWING RESEARCH & DEVELOPMENT BY CSIRO AND MONASH UNIVERSITY INTO LOW ENERGY USE, ENERGY RECYCLING AND SOLAR AIR CONDITIONING
  • OUR SENSIBLE HEAT RHE PROVIDES FREE AIR CONDITIONED FRESH AIR INTO A BUILDING, BY RECYCLING THE ENERGY FROM THE AIR CONDITIONED EXHAUST AIR, THAT IS BEING DISPLACED BY THE ENTERING FRESH AIR THROUGH THE ROTATING RHE
  • THIS REPLACES THE CONTAMINATED AND OFTEN HUMID EXHAUST AIR WITH FRESH DRY AIR CONDITIONED AIR. THIS IS PARTICUALRLY IMPORTANT FOR INDOOR POOL HALL CONDITIONING AND FRESH AIR VENTILATION FOR BUILDINGS IN MODERATE HUMIDITY LOCATIONS.
  • This unique light 10cm thin Mylar Matrix Wheel transfers heat between two airstream by simply rotating the porous and highly corrosion resistant thin Mylar plastic film matrix between the hot and cold air streams at a low rotational speed of 18 rpm with negligible carryover mixing. This unique thin Mylar matrix rotor (non-segmented design) is wound under high tension around a central hub, to form an integral high strength rotor, with firm parallel passages for air to flow smoothly over the uniquely short flow path.

 This unique rotor design, initially developed by Australia's CSIRO, ensures optimal highly efficient in recycling heating and cooling energy from the exhaust air in air conditioned buildings, such as aquatic centres, indoor pools, hospitals and commercial buildings, to condition fresh air, with minimal air pressure drop resistance to minimise fan power usage. A higher temperature application industrial Kapton plastic film wheel is available for heat recovery in, for example, furnaces and driers. Balanced flow sensible heat efficiencies greater than 90% can be achieved with a low pressure drop.
 These wheels deliver substantial energy and cost savings all year round, as well as environmental benefits by reducing green house gas emissions. They are used extensively in Australian indoor pools, aquatic centres, commercial buildings and hospitals. They have a proven long life exceeding 30 years, even in aggressive chlorinated pool and salt air sea side environments. In some cases they have been reused after over 30 years in aquatic centres after renovations or complete pool rebuild (see the published article on Melbourne's Box Hill Aquatic in the Testimonials Section).
Major benefits include
  • A simple low 18rpm rotating and self cleaning wheel
  • Superior energy recycling efficiency
  • Decades of proven longevity even in aggressive indoor pool and sea side environments
  • Many satisfied customers of over 50 years, such as Australian Institute of Sport, Australian Parliament house Pool, Melbourne's Crown Casino, City Pool, Box Hill Aquatic, and numerous Australian Council Aquatic Centres and Hospitals.
  • We offer an unprecedented 10 year warranty on the Mylar matrix of the rotor


 PROVEN SERVICE LIFE GREATER THAN 25 YEARS
Even in harsh aquatic indoor pool conditions our wheels have exhibited a service life well in excess of 30 years providing a long term, lowest life cycle cost solution to environmental sustainability and substantial energy cost savings for all our customers.A full list of applications using these wheels is given in the High Profile Projects section of this web site. A list of High profile 20 to 50 year continuous operation Case Study examples where our wheels are still in continuous operation today are:
  • Queen Elizabeth Hospital WA since 1968
  • Geelong Hospital Vic since 1973
  • Box Hill Aquatic Centre Vic since 1979
  • Box Hill Institute Vic since 1979
  • Australian Institute of Sport Aquatic Centre Canberra since 1982
  • Melbourne City Baths since 1982
  • Dandenong Oasis Aquatic Vic since 1990
  • Belmont Aquatic WA since 1992
  • Crown Casino Melbourne indoor pool since 1996
  • Federation Square Melbourne since 1999
  • Bill Ellul
Managing Director B.E (Hons), FIEAust, MAIRAH P: 61 409 796 146 bill@ecopower.com.au

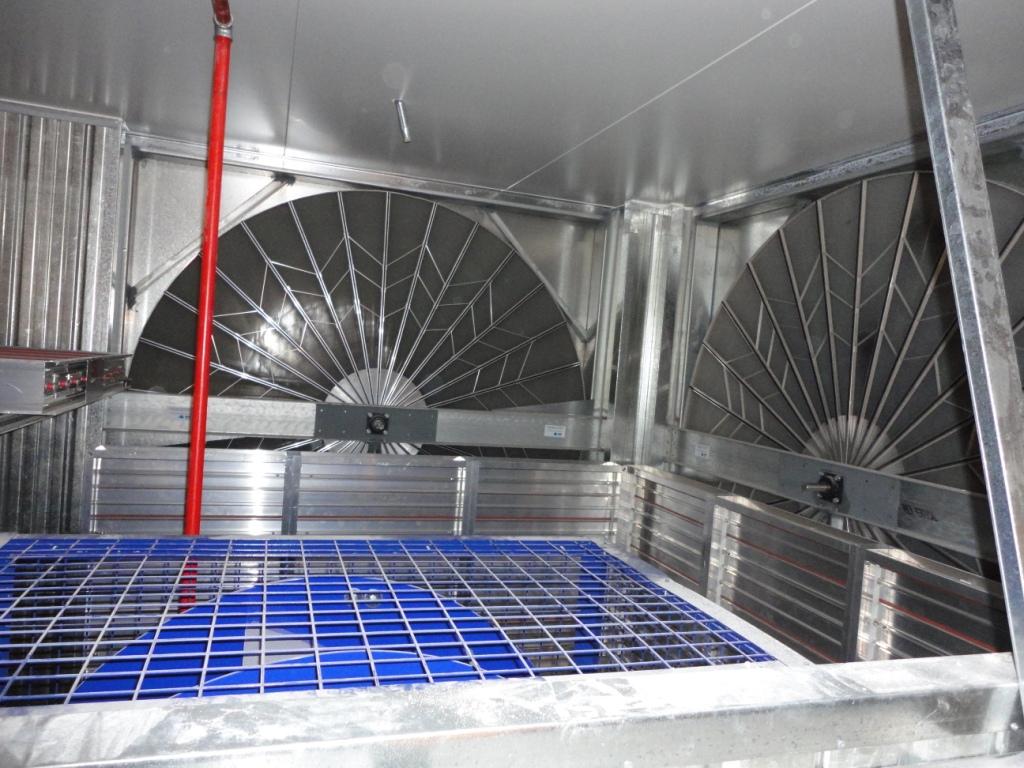

555 BOURKE ST ST JAMES MELBOURNE USING 14 MYLAR HEAT WHEELS
RHE BROCHURE 1 Download File
RHE BROCHURE 2 Download File
RHE BROCHURE 3 Download File

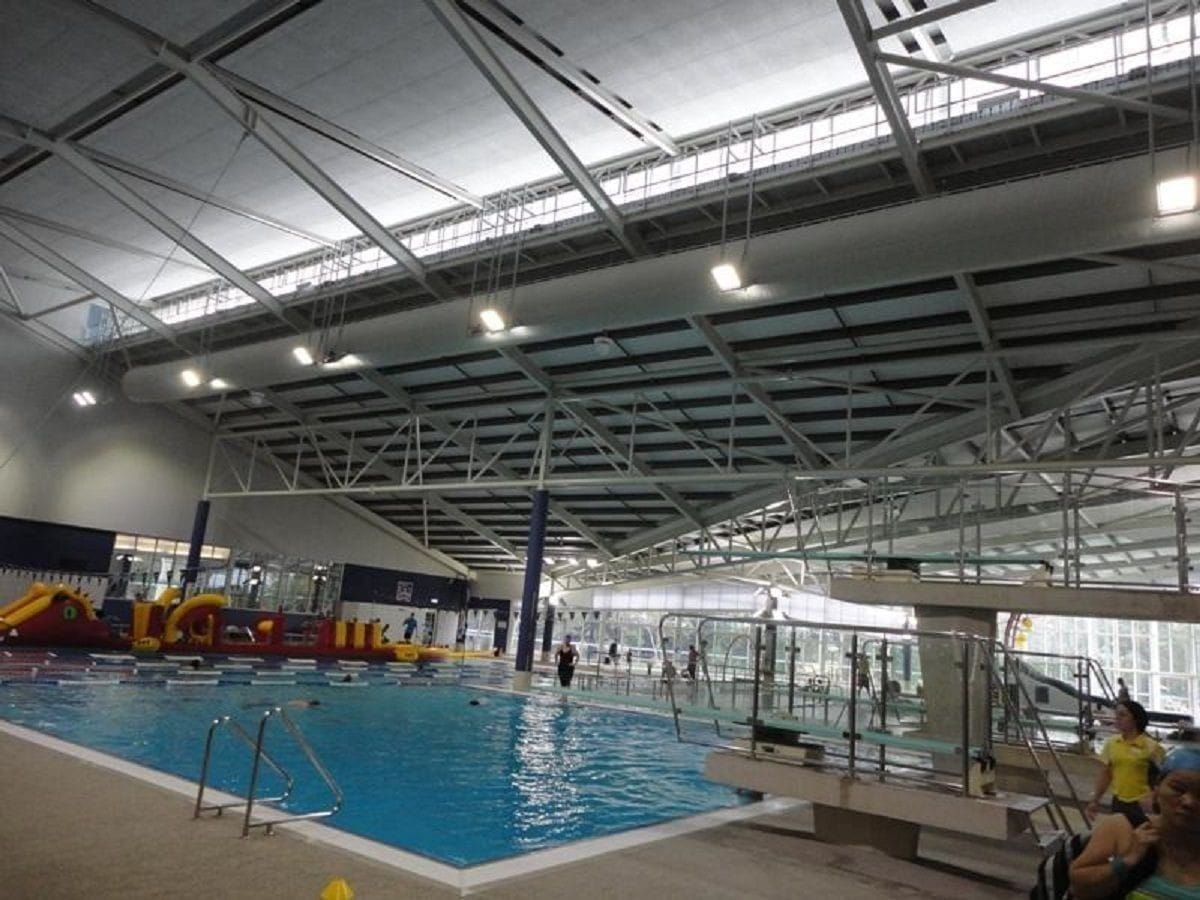

BOX HILL AQUALINK MELBOURNE USING 3 NEW & 2 33YR RE-USED WHEELS
  • Self cleaning action minimising reliance on air filters

  • 3 Australian Energy Awards

  • Benefits Green Buildings and Indoor Pool Heating/Cooling Energy Recovery

  • Industrial heat recovery wheels to 300C

  • Standard 3 year warranty on Mylar Matrix for all Rotors and with 10year possible extension

  • RHE was one of top 30 Australian 2012 Cleantech National Competition Companies
OUR COMPETITIVE ADVANTAGE
  • HIGHER PERFORMANCE
  • LONGER LIFE
  • LOWER LIFE CYCLE COST

 RESULTS IN
  • HUGE PRICE ADVANTAGE

SUBSTANTIAL SUSTAINABLE ENVIRONMENTAL GREENHOUSE GAS REDUCTION
